| HARDWARE PARAMETER | |
|---|---|

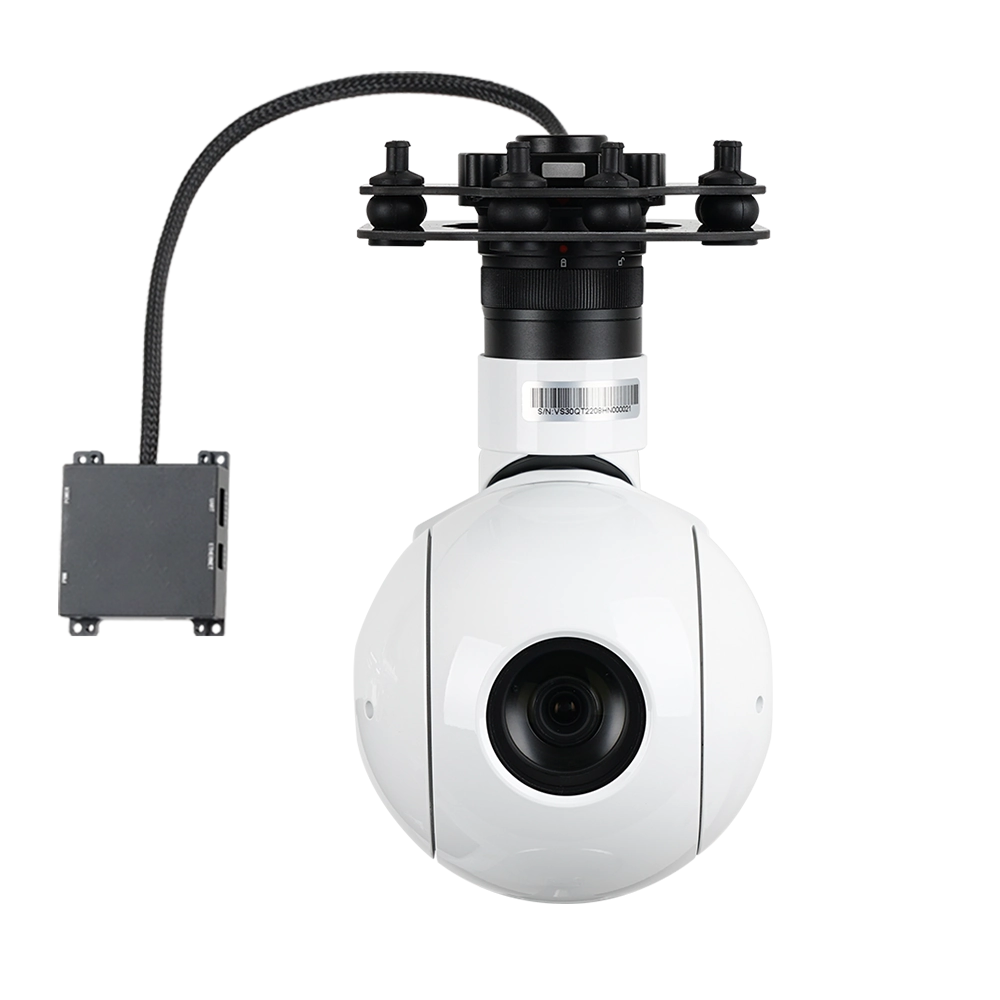

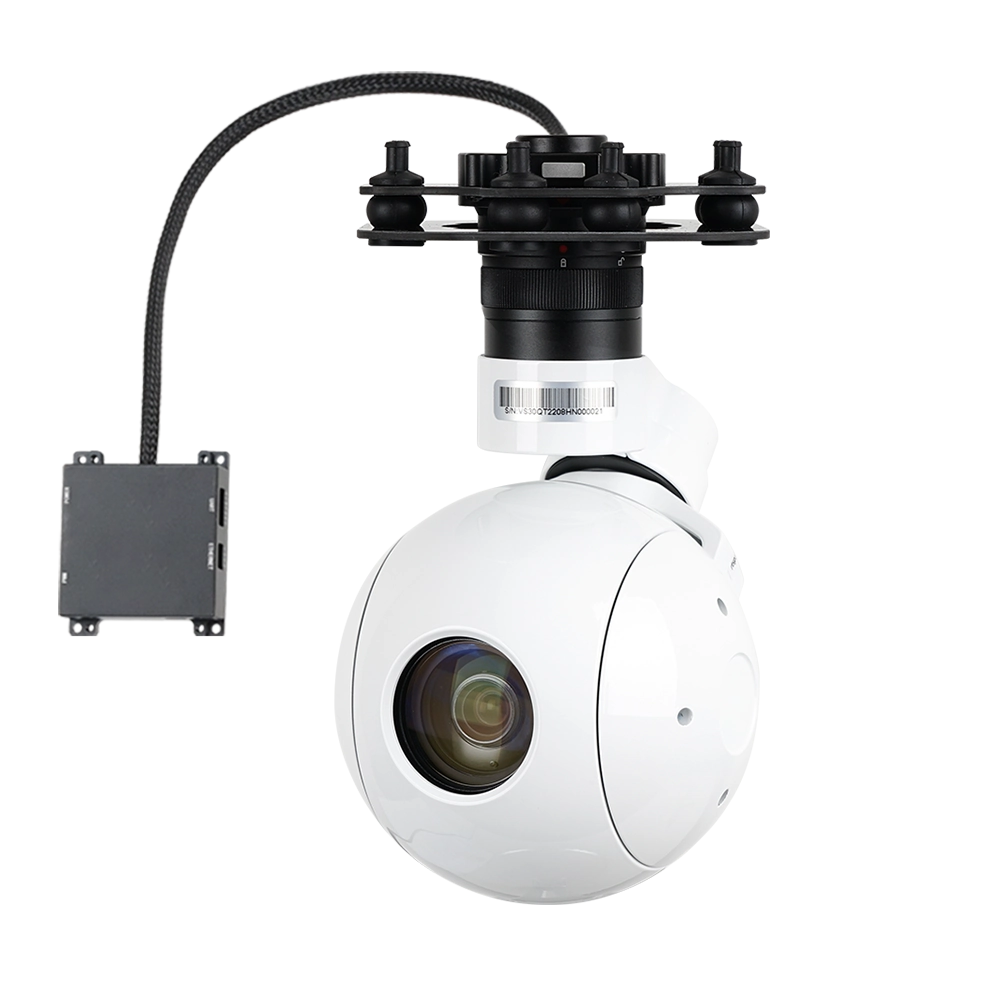

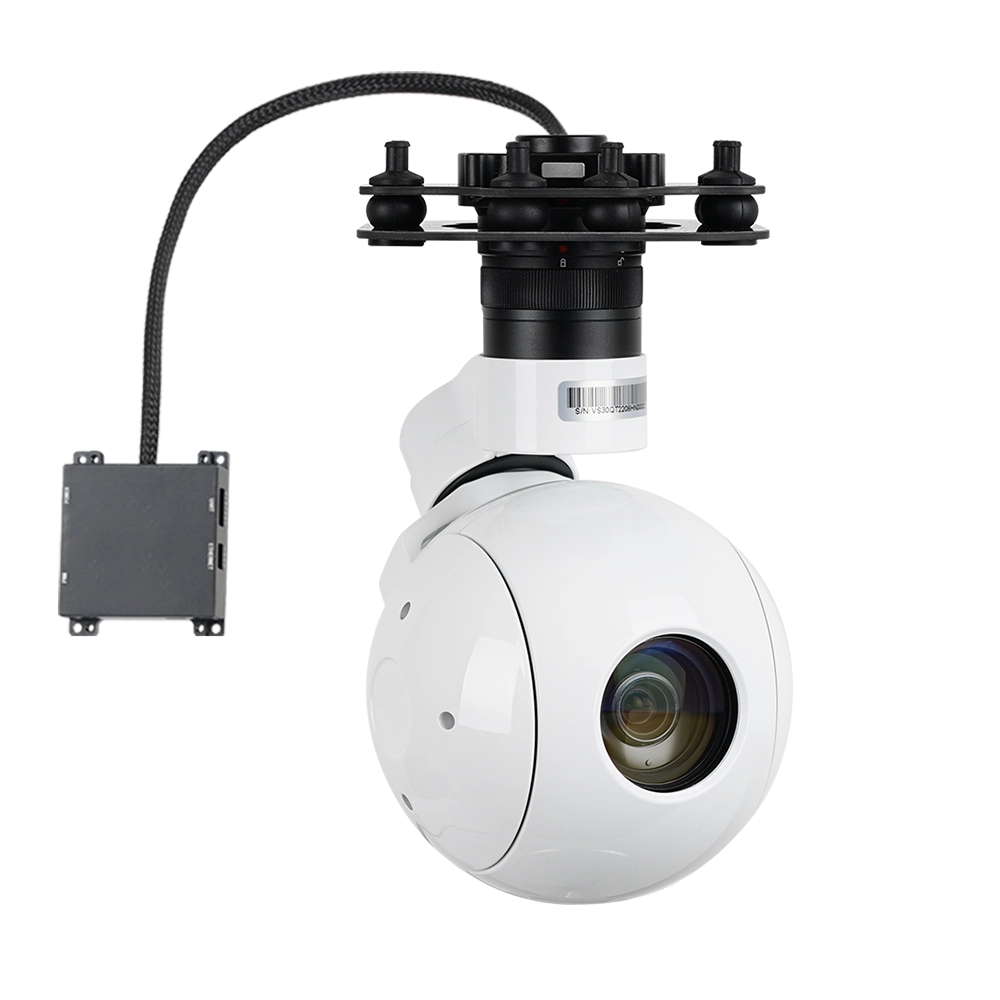

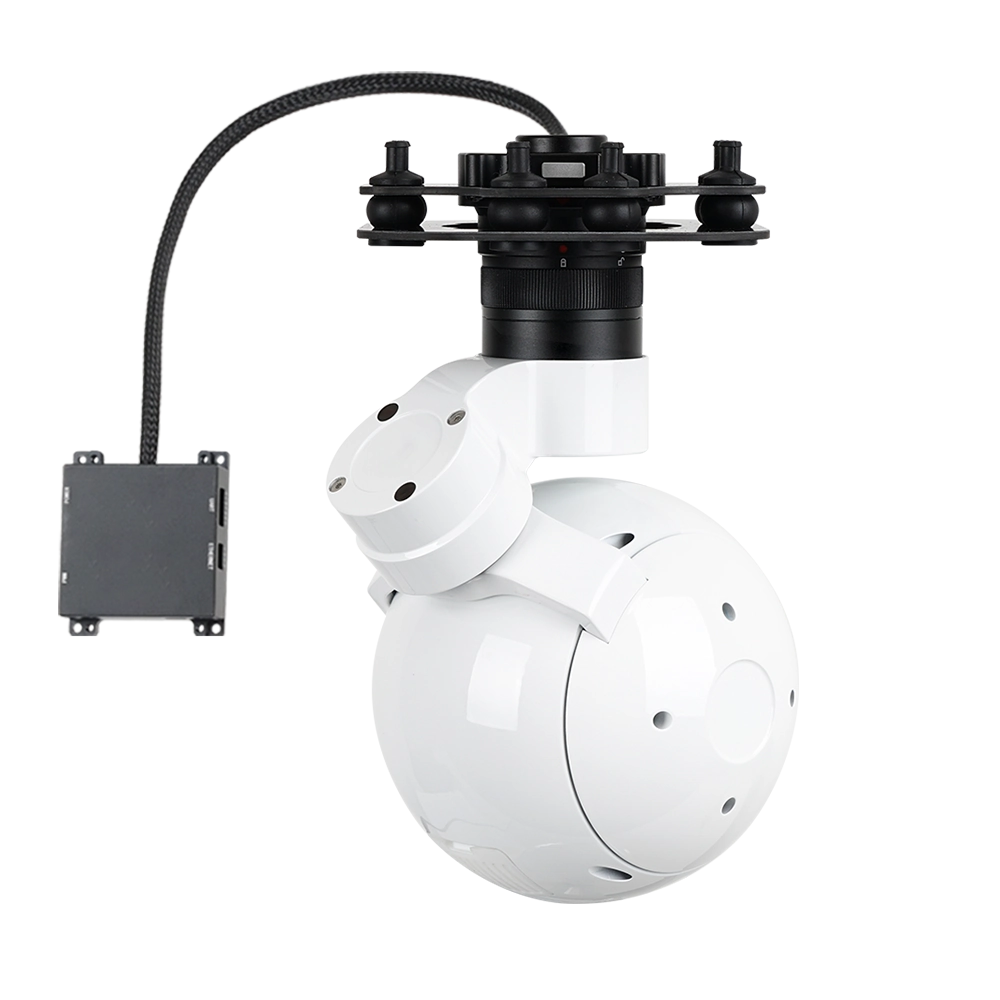

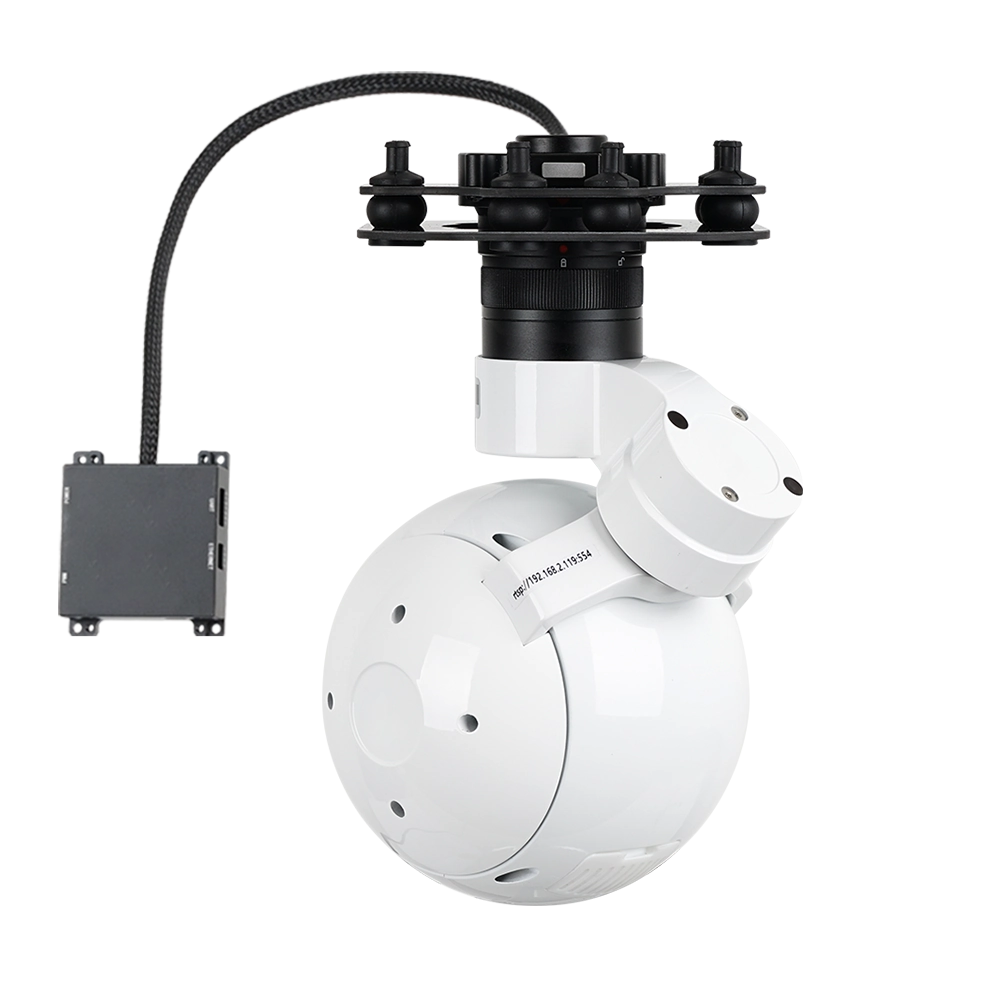

| Model No. | Q30T Pro II |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 650mA @ 12V |
| Idle current | 550mA @ 12V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 60fps) / IP (720p) / SDI (1080P 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Control method | PWM / TTL / S.BUS/ TCP (IP output version) |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -50°～165°, Roll: ±27°, Yaw/Pan: ±300° / ±360°*N (IP / SDI output version) |
| Controllable Range | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | SONY 1/2.8″ “Exmor R” CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P/720P 25fps/30fps) |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) 720p mode: 63.7°(wide end) ~ 2.3°(tele end) SD: 47.8°(wide end) ~ 1.7°(tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color [email protected] |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/ |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 895g / 946g (Viewport version) |
| Product meas. | 104.9*128.2*183.9mm / 104.9*128.2*189.6mm(Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards， 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2038g |
| Package meas. | 300*250*200mm |
